Portable Drip Irrigation Kit for One Acre Farming
A Portable Drip Kit is a complete drip irrigation system designed with flexible Flexnet pipes used as mainline and submain. The system is foldable, movable, and cost-effective, making it highly suitable for small to medium-scale farming. This kit is designed to cover approximately 1.1 acre and is ideal for irrigating row crops and vegetables.
The standard design is based on 1.2 m & 1.5 m lateral spacing. Available of Dripline in Portable Kit is Streamline having 2 options of Dripper spacing as 30 cm & 40 cm.

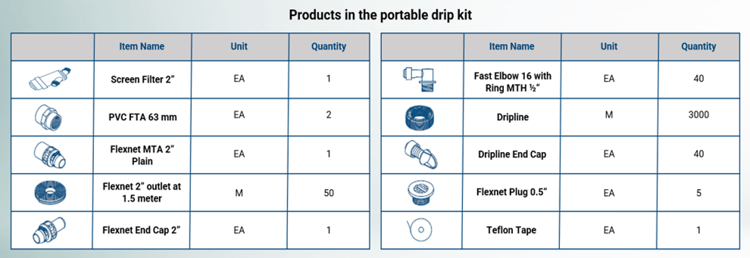

The kit includes all necessary components required for installation and efficient irrigation operation.
Key Benefits:
- Higher and improved crop yield 2) Healthy and sustainable crop growth 3) Saves labour and time 4) Reliable performance 5) Easy to operate and maintain.
Factors That Influence Irrigation Kit Selection
The selection of a Portable Drip Irrigation Kit depends on multiple technical and field conditions to ensure efficient performance and optimum crop yield.
Key Factors:
- Land Size- The total area to be irrigated (e.g., 1.1 acre) and field layout (regular or irregular shape) determine the system design and pipe length requirements.
- Type of Crop- Different crops (row crops, vegetables, orchards) have varying water requirements, spacing, and irrigation frequency, which directly influence kit selection.
- Lateral spacing- e.g., 1.2 m or 1.5 m and plant-to-plant spacing decide emitter spacing and the type of Flexnet outlet configuration required.
- Topography (Land Slope)- Uneven or sloped land may require pressure regulation, zoning, or special design considerations for uniform irrigation.
- Other factors such as Soil type, water availability and maintenance.
Modular Use for Different Farm Sizes-
The Portable Drip Kit is designed with a modular approach, allowing easy customization based on farm size and crop requirements. For larger areas, multiple units (e.g., two kits for 2 acres) can be combined to expand coverage.
The system can also be customized with additional components such as a Venturi for fertigation, depending on the grower’s needs. Different models can be selected or configured to suit specific field conditions.
Typical Applications of Portable Drip Kits -
Portable Drip Kits are suitable for a wide range of agricultural and irrigation needs, including:
- Agricultural and horticultural crops
- Surface and subsurface irrigation systems
- Compatible with thinwall and heavywall driplines
- Can be used for both drip and sprinkler irrigation
- Functions effectively as a water carrier and distribution system
