PC Spray Stake

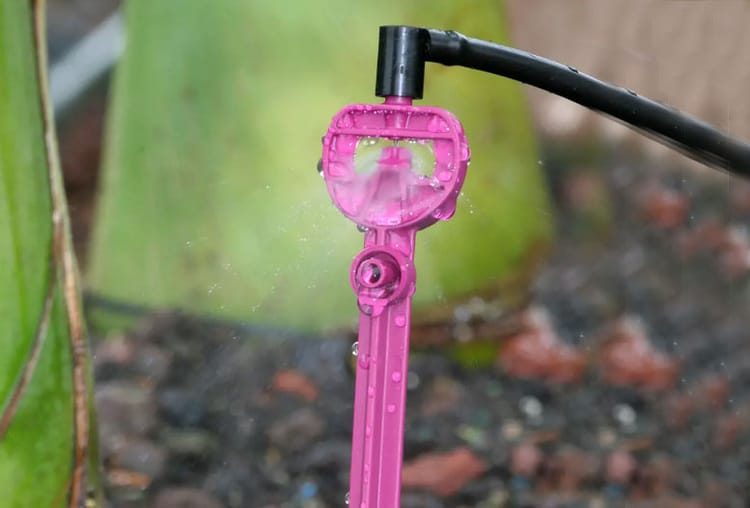

Netafim PC Spray Stakes feature pressure compensation and include a check valve for enhanced control of water and fertilizer distribution. These stakes ensure efficient spray patterns that saturate the soil surface to optimize water retention, substantially reduce misting, and prevent wind drift. With their straightforward design, convenient close-off mechanism, and resistance to sunlight, fertilizers, and chemicals, they offer long-lasting reliability.

Why PC Spray Stake?

  • Uniform water and fertilizers distribution: Efficiently wet the soil mix with a downward-angled spray pattern, typically supplied as a pre-assembled unit including a Pressure Compensated dripper (PCJ), a 3x5 micro tube, elbow adapter, and Spray Stake.
  • Uniform wetting pattern over the entire surface: Assembled with a PCJ dripper to ensure water uniformity for every pot (depending on shut-off pressure).
  • Secured anti-drain CNL mechanism: Can be assembled with PCJ with CNL feature to prevent draining at the end of irrigation cycle and ensuring readiness for the next irrigation cycle.

Specifications

  • Variety of flow rates: 5 different flow rates (0.7, 1.0, 1.6, 2.3, 3.5 L/H) can address any condition or application
  • Wide range of pipe diameters: 16.0 to 23.0 mm
  • Wall thickness: 1.0 mm - 1.2 mm
  • Pressure compensating range: 0.4-5.0 bar.
  • Superb UV and chemical resistance
