SpinNet™

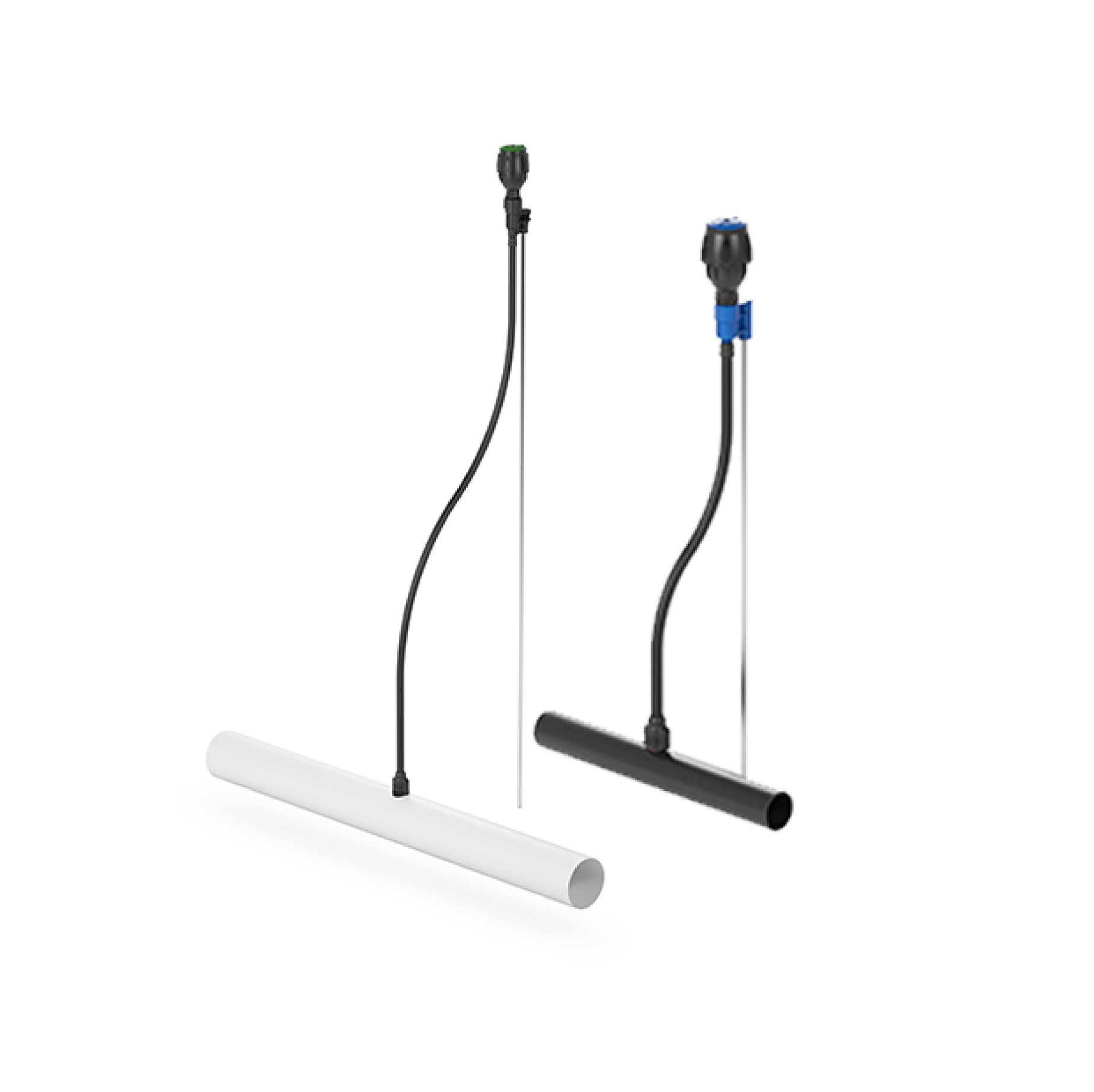

When irrigating upside-down in greenhouses or net-houses or tunnels, SpinNet™ bridgeless micro-sprinklers give you uniform water distribution and no drip-off, for perfectly uniform crop yields.

Why SpinNet™?

  • High crop uniformity: Achieve perfectly uniform distribution of water and nutrients, that results in uniform crops.
  • Avoid plant damage: Bridge-less design ensures drip-free operation, protecting any plants located below from water drip-off.
  • Fast maintenance: Simple disassembly without tools, enables fast and simple cleaning - saving time and labor.
  • Easy cleaning: Chemical-resistant materials (AA) let you flush system using acid treatments.

Specifications

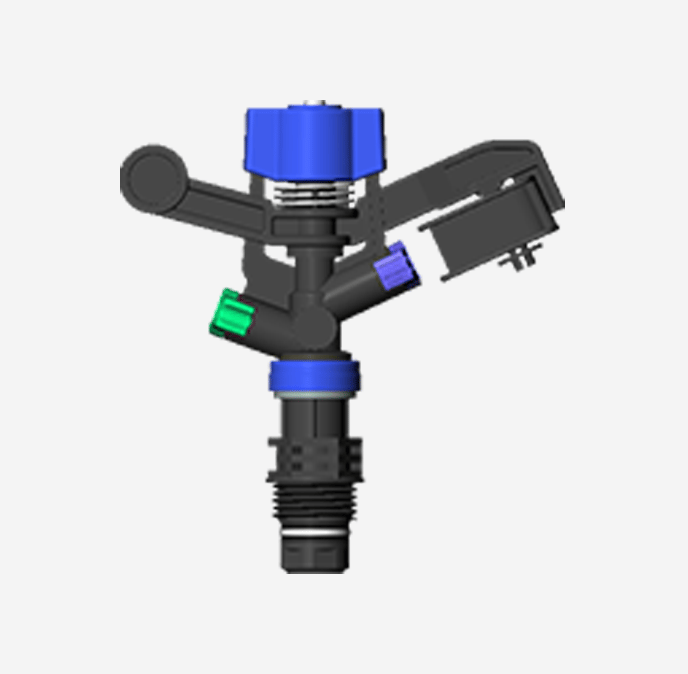

  • Low pressure 1/2" impact sprinkler with 24 degrees water trajectory angle, for full coverage installation with spacing up to 10X10 meters.
  • 3 different flow rates: 350, 380, 450 L/H
  • Nominal flow rate at: 1.5 bar
  • Recommended pressure range: 1.0 - 2.0 b bar
  • Water Trajectory angle: 24 Degrees
  • Water distribution is achieved by combination of 2 nozzles. Front nozzle and rear nozzle.
  • 1 types of inlet connector: 1/2” male threaded
Specifications
Downloads

Downloads

Product sheets

Product sheets

Technical information

Technical information

NetSpeX™ The smart sprinkler system designer

  • Enjoy a super-fast and professional design solution
  • With an awesome user experience too
  • Design your system by application
  • Optimize performance for an existing sprinkler model
  • Compare different sprinklers or models

Do the smart thing.

Spec out your next sprinkler system with NetSpex!

Learn about NetSpeX™ - The smart sprinkler system designer. Simply enter your requirements and you’ll get the optimal sprinkler product and spacing pattern for your field.
