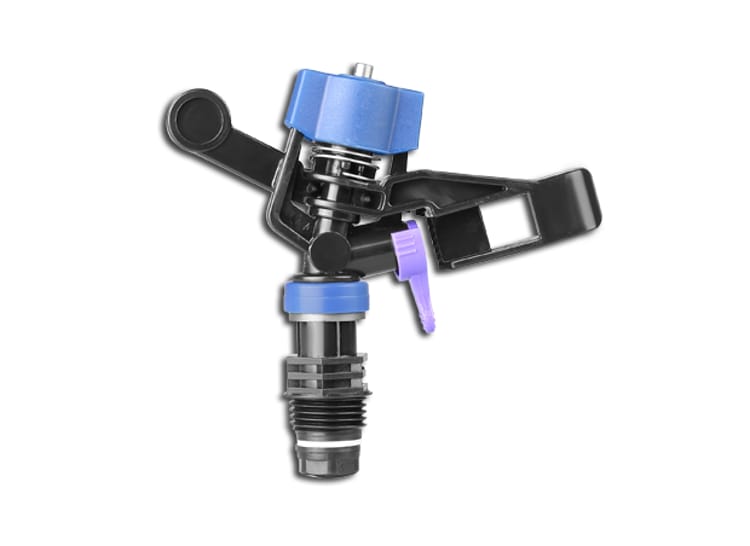

D-Net™ 6550

Low trajectory impact sprinkler for uniform under-canopy irrigation

With its low water trajectory angle, D-Net™ 6550 is ideally suited for precise under canopy irrigation of banana or oil palm plantations up to 12 x 12 meters or field crops with windy conditions.

Superb water distribution uniformity thanks to 3D diffusion arm
Robust build quality withstands all climates and agricultural chemicals

Application

Irrigation

Pressure

Medium pressure
Low Pressure

Coverage type

Full Coverage: Medium, spacing installation
Full Coverage: Small spacing installation

Crop type

Field crops
Orchards

Trajectory angle

Why D-Net™ 6550?

Higher and better yields: Industry-leading water distribution uniformity, relative to flow rate and installation spacing, achieved by a unique 3D diffusion arm.
Designed for the orchard environment: a powerful jet overcomes fallen leaves or branches, providing the perfect angle to work below the canopy.
Long-lasting performance: Robust design makes the sprinkler especially resistant to field damage, ensuring uninterrupted operation over the product’s life.
Weather and fertilizer-proof: Tough UV-resistant materials increase the sprinkler’s durability in any climate and with any applied nutrients.

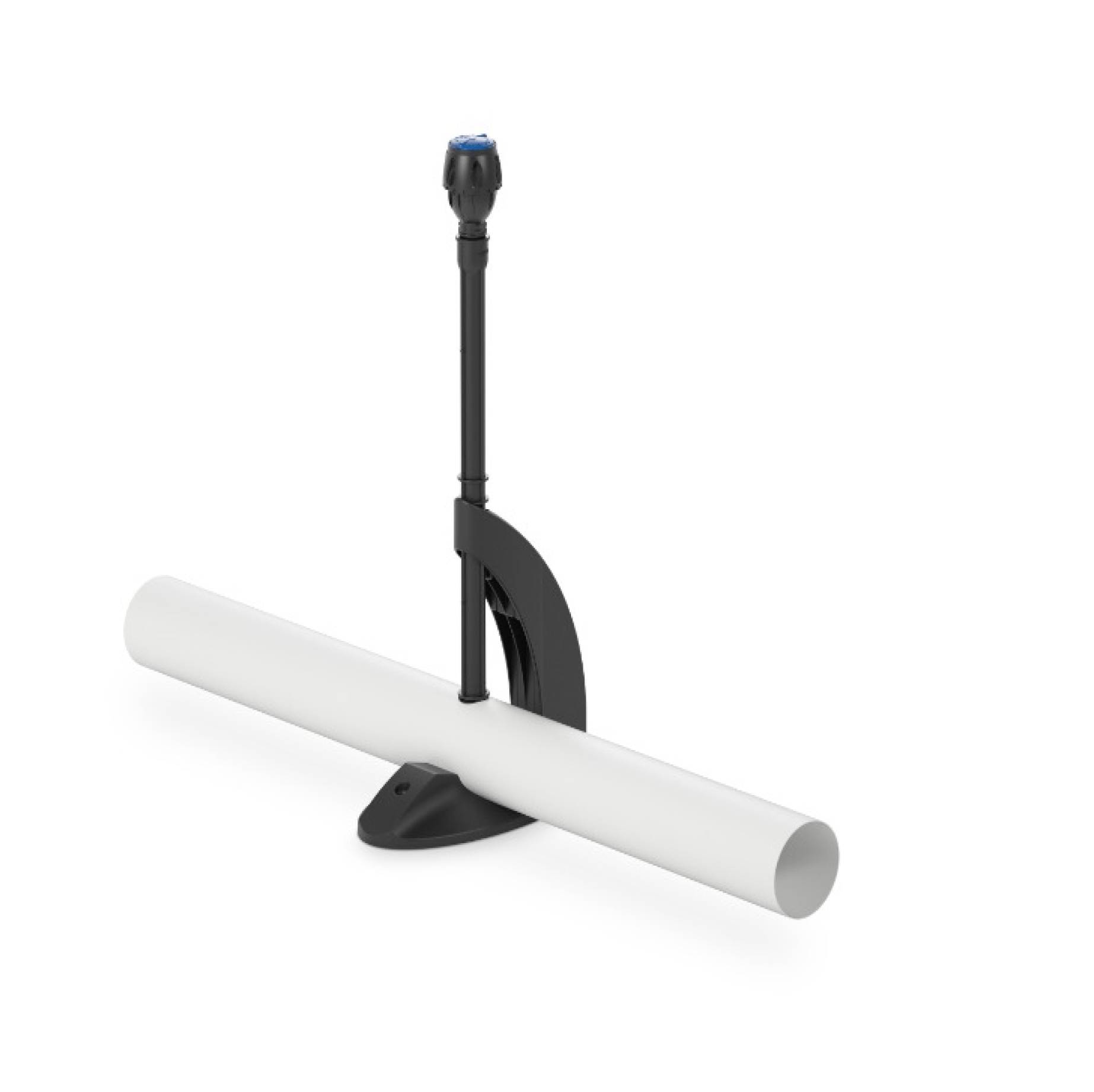

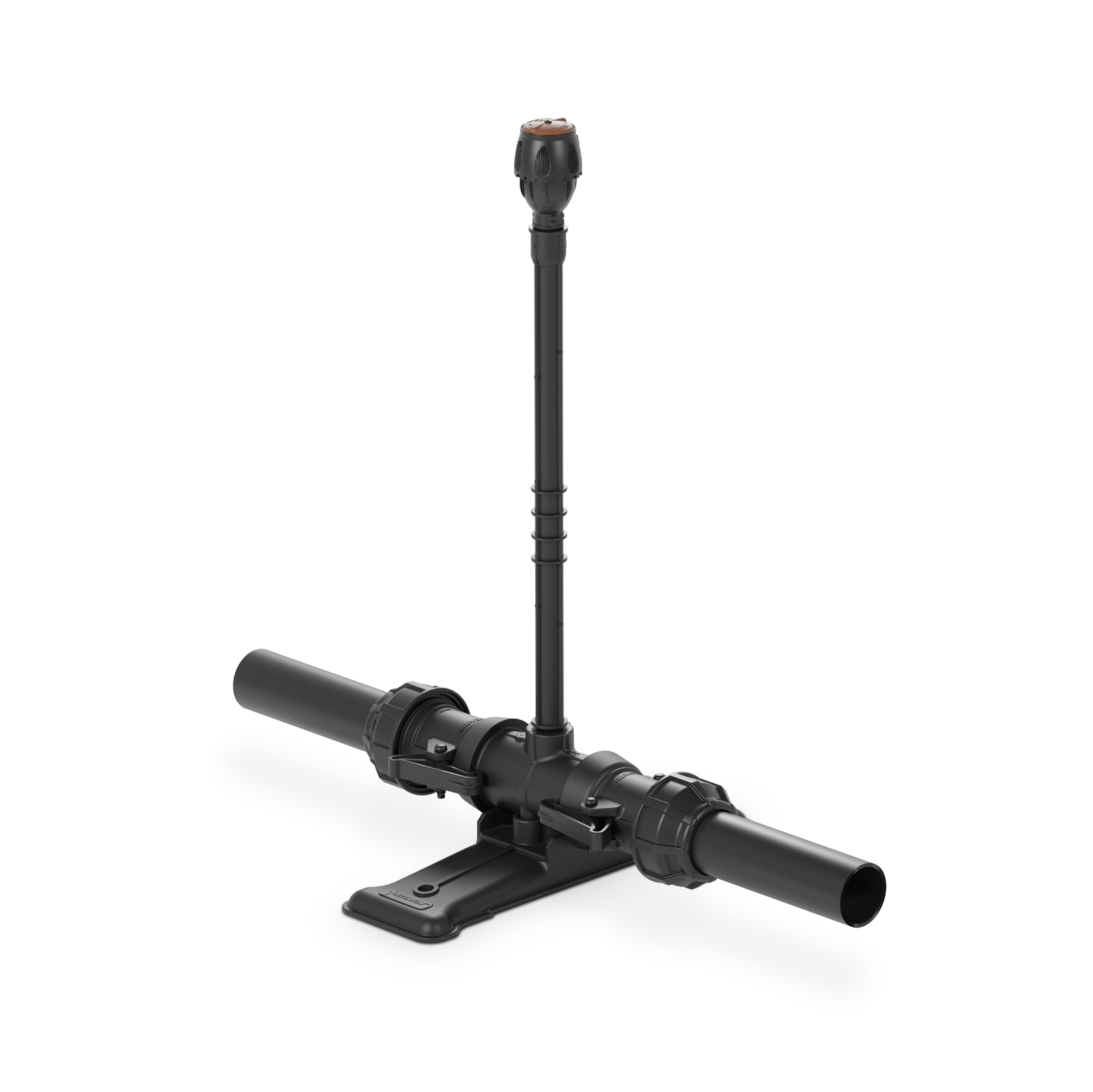

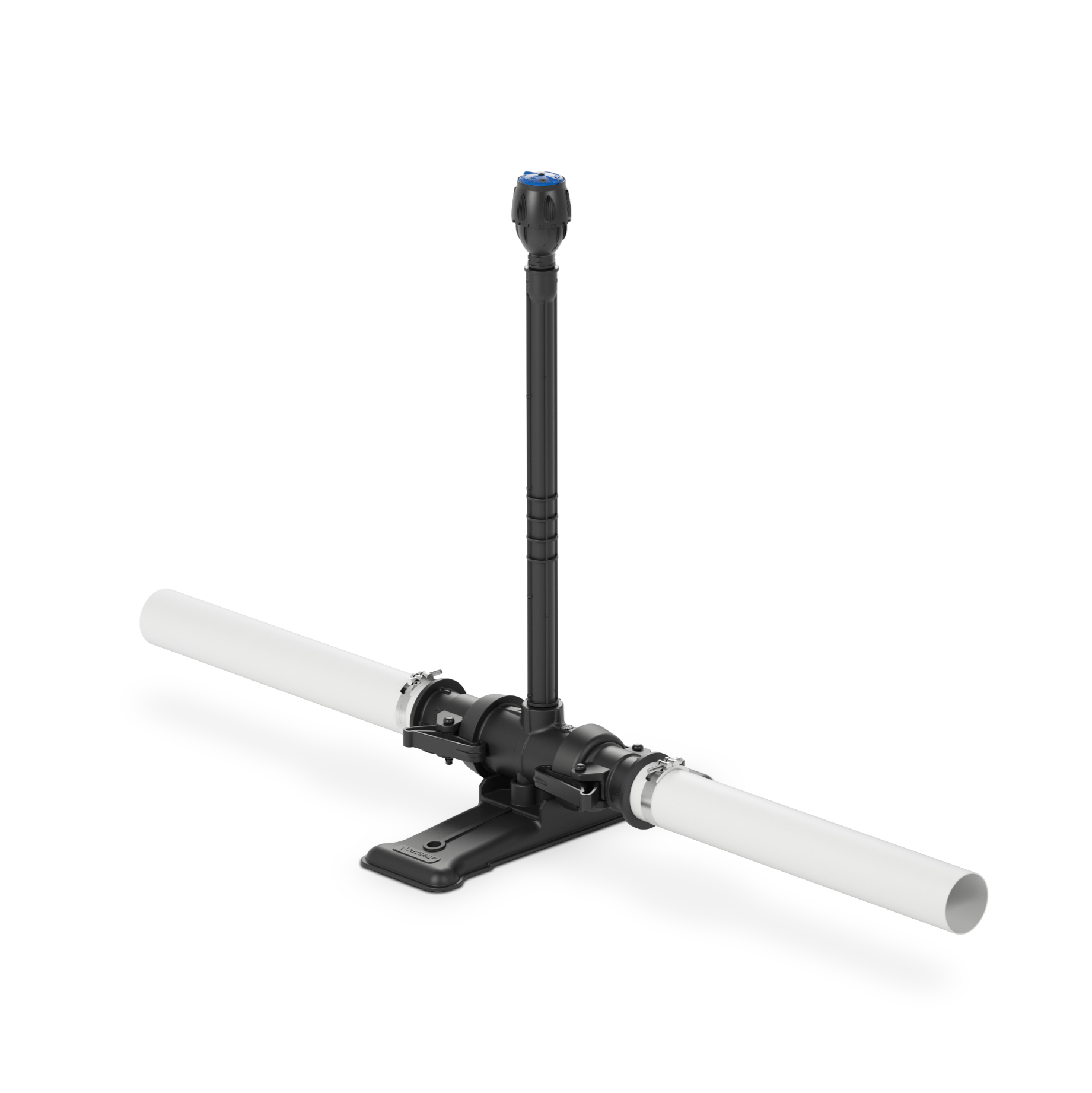

Flexible installation: Designed to be installed on solid sets or on removable field stands.
Easy maintenance: Special nozzle-key was designed to allow simple cleaning of debris from the nozzle even under pressure.

Specifications

3 different flow rates: 355, 400, 510 l/h. Nominal flow rates at 2.5 bar pressure.
Recommended working pressure: 2.0 to 3.0 bar (at the sprinkler head).
Water trajectory angle: 14 degrees
Inlet connection: 1/2” male threaded
Color-coded nozzles for easy identification

Downloads

Product sheets

Netafim D-Net™ 6550 Technical Product Sheet (PDF)

Other D-NET™ models

D-NET™ 8550

Thanks to its innovative 3D arm, this 1/2" impact sprinkler offers maximum water-distribution uniformity.

D-NET™ 8550 F.R.

D-Net™ 8550 F.R. 1/2" impact sprinklers, with 3D diffusion arm and unique flow regulated nozzles guarantee excellent crop uniformity and consistency for field crops and vegetables irrigation throughout the field, with sprinkler spacing up to 12x14 meters.

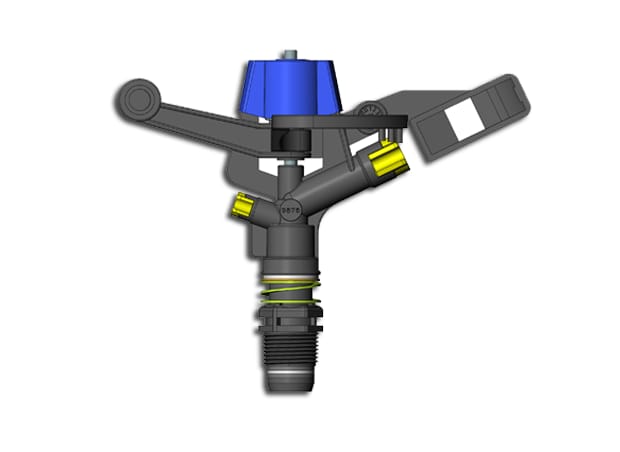

D-NET™ 9575

D-Net™ 9575 impact sprinklers deliver industry-leading water distribution uniformity and suit field crops with spacing up to 15 x 18 meters.

D-Net™ 9575 AA

3/4" impact sprinkler with unique 3D arm and Adjustable Arc for part circle irrigation. "Ideal sprinkler for edge irrigation"

D-Net™ 8550 AA

1/2" impact sprinkler with unique 3D arm and Adjustable Arc for part circle irrigation. "Ideal sprinkler for edge irrigation"

D-Net™ 0950

With its low water trajectory angle, D-Net™ 0950 is ideally suited for precise under canopy irrigation of banana or oil palm plantations up to 10 x 10 meters or field crops with windy conditions."
